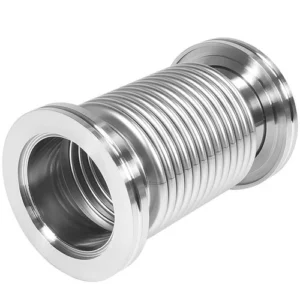

SS Expansion Hose Pipe

Product Details:

We are offering wide range of SS Expansion Hose Pipe. Product Details:

S. S. Corrugated Flexible Hoses

Stainless Steel corrugated flexible hoses are offered from size 6mm NB (1/4″) to Size: 200mm NB (8′), The Annular Corrugated hose body provided the flexibility & pressure tight core of the assembly, We also manufacture high flexible close-pitch hoses for special applications.

BRADING

When pressure is applied, unbraided corrugated hose tends to elongate axially. To restrain this, a external layer of S.S. wire braid is provided. The braid also makes the assembly pressure resistant.

Sometimes two or even three layers of braiding are provide for high pressure applications. The braiding is highly flexible & follows the movement of the hose. The braid is normally manufactured in S.S. 304 Wire, how ever S.S. 316 & S.S. 321 braid can also be manufactured. We also supply wire braid in different configurations as per customer specifications.BRADING

When pressure is applied, unbraided corrugated hose tends to elongate axially. To restrain this, a external layer of S.S. wire braid is provided. The braid also makes the assembly pressure resistant.

Sometimes two or even three layers of braiding are provide for high pressure applications. The braiding is highly flexible & follows the movement of the hose. The braid is normally manufactured in S.S. 304 Wire, how ever S.S. 316 & S.S. 321 braid can also be manufactured. We also supply wire braid in different configurations as per customer specifications.

ADVANTAGES OF S S FLEXIBLE HOSES

• High physical strength combined with light weight.
• Suitable for wide temperature range (-270oC to 700oC)
• Good corrosion resistance. Resistance to fire, moisture, abrasion & penetration.
• Absorbs vibration and noise from pumps, compressors, engines etc.
• Compensates for thermal expansion or contraction of piping.
• Correct problems of misalignment.
• A flexible & quick alternative for rigid piping in difficult locations.

APPLICATIONS OF S S FLEXIBLE HOSES

• Refineries
• Power Plants
• Steel Plant
• Nuclear Installations
• Fertilizer Industry
• Pharmaceutical Industry
• Cryogenic Service
• Chemical Industry
• Boilers
• Paper Plants
• Lubrication Systems
• Automotive Industry
• Steam, Hot Water
• Pneumatic Service
• Ports & Ship Yards
• Defence Industry
• Piping
• Vibration Absorption
• Railways

STATIC INSTALLATIONS

Where the flexible Hose is used to connect misaligned pipes and remain in a static position.

OCCASIONAL FLEXING

Where the Hose is required to flex continuously, such as manual operated equipment.

CONSTANT FLEXING

Where the Hose is required to flex continuously, usually in moving machinery.

VIBRATION

High frequency : low amplitude movement e.g. on a compressor.
